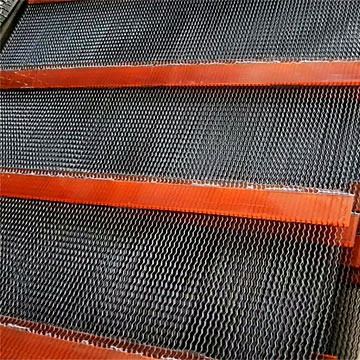

Our anti-clogging screen range utilizes flexible wire and polyurethane strip design to overcome blinding and pegging. Perfect for damp aggregates and fine sorting operations.
Poly ripple screen cloth is light but durable with a higher open area than woven wire. It is very active & increases throughput when compared with conventional woven wire screen cloth. The wire ripple is constructed from a combination of crimped wire (cross) held in place by means of abrasive resistant polyurethane. Reduced Pegging or blinding - increased efficiency capacity. Poly ripple is longer lasting than woven wire & wire ripple, which therefore reduces maintenance and saves money.
Poly Veno harp screen cloth is light but durable with higher open area than woven wire. The Poly Veno Harp is constructed from a combination of crimped wire (cross) & straight wire held in place alternatively by means of abrasive resistant polyurethane. Known to last up to 3 times longer than other standard screen cloth. Overcome the wear problem caused by using the finer aperture screen cloth due to high T.P.H. or the lump size. Reduced Pegging or blinding - increased efficiency capacity.
Extremely effective in screening dry-manufactured sand, agricultural lime, mulch and wood chips. Can increase production in screening fine, sticky materials or other lightweight but difficult-to-screen materials. Ideal for screening RAP asphalt and other, similar aggregates, as well as for removal of super-fine material. Available in Super tough oil-tempered or full hard stainless steel, and may be ordered with polyurethane-coated cluster wires for maximum wear-life.
| Specification / Parameter | Details & Capabilities |
|---|---|
| Aperture Size | Min - 2.5mm, Max - 30mm |
| Wire Diameter | Min - 2mm, Max - 6.3mm |
| Material of Construction | Spring Steel (High Carbon), Stainless Steel, Mild Steel, Galvanised Steel, etc. |
| Commercial Parameter | Value / Policy Details |
|---|---|
| Estimated Price Range | ₹800 - ₹10,000 (Ex-Works Satara) |
| Warranty Period | No warranty on spares/wear parts (Standard industrial terms) |
| Replacement Policy | 7-Day Replacement for manufacturing/size defects. See Policies & Warranty. |
| Standard Lead Time | 1-2 weeks |
As reputable manufacturers in Maharashtra and India, Chema Engineers provides guaranteed ex-stock dispatch of equipment and wear spares from our MIDC Satara facility across all major industrial aggregate belts:
A: Poly Ripple and Veno Harp screens combine individual vibrating wires bound with polyurethane strips, offering up to 3 times longer service life and significantly greater open area than woven wire.
A: Yes, the independent wire vibration prevents fine damp particles from bridging over apertures, ensuring continuous high-throughput screening without manual cleaning.
A: All anti-clogging screens are manufactured by Chema Engineers in MIDC Satara, Maharashtra, with fast delivery to quarries across Maharashtra, Gujarat, Rajasthan, and Madhya Pradesh.
