We offer a comprehensive range of heavy-duty slurry pumps, featuring specialized natural rubber linings and Hi-Chrome alloy metallurgy tailored for sand washing plants, mineral processing, and mining aggregate plants. Our pump configurations encompass 10/8, 8/6, 6/4, 4/3, 3/2, HR75, HR100, HR150, HR250, MM75, and MM100 models.

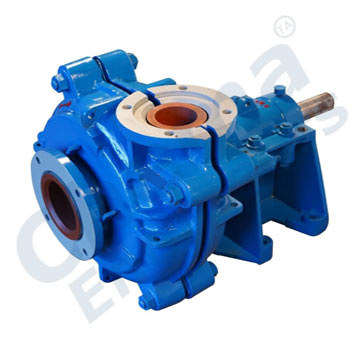

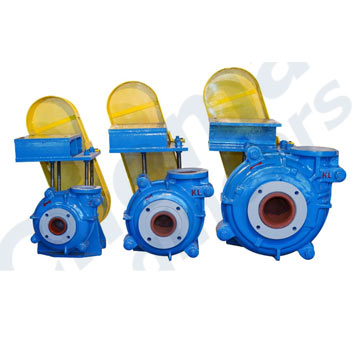

Chema Slurry Pumps feature a split casing design to allow easy access to wet-end liners, impellers, and gland seals during maintenance. Most units come with an assembly aid arm to support the suction casing during component inspection. This allows technicians to swing the casing away from the pump body instead of dropping components or requiring heavy cranes.

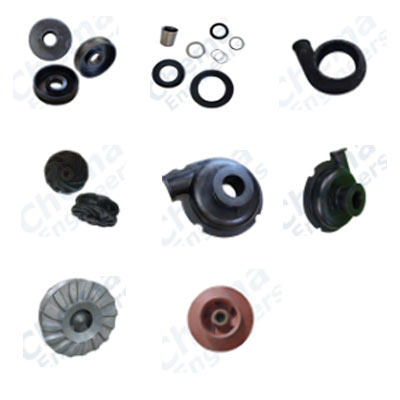

Field-replaceable wet-end liners provide superior wear protection and operational longevity. Liners are self-gasketing to deliver leak-proof sealing under high head pressures. Rubber compounds include natural rubber blends for maximum fine sand abrasion resistance and synthetic nitrile for aggressive chemical chemistries.
The bearing assembly utilizes heavy-duty roller bearings and double-row self-aligning spherical roller bearings, eliminating complex preload setup during reassembly. Lubricate as instructed and units are ready for immediate duty cycles.
| MODEL / SIZE | SUCTION / DISCHARGE | MAX FLOW (m³/hr) | MOTOR POWER (HP) | LINING TYPE |
|---|---|---|---|---|
| Chema 3/2 | 3" / 2" | 50 - 90 m³/hr | 7.5 - 15 HP | Rubber / Hi-Chrome |
| Chema 4/3 | 4" / 3" | 90 - 120 m³/hr | 15 - 25 HP | Rubber / Hi-Chrome |
| Chema 6/4 | 6" / 4" | 150 - 220 m³/hr | 30 - 50 HP | Rubber / Hi-Chrome |
| Chema 8/6 | 8" / 6" | 250 - 350 m³/hr | 60 - 100 HP | Rubber / Hi-Chrome |
| Chema 10/8 | 10" / 8" | 400 - 600 m³/hr | 125 - 200 HP | Rubber / Hi-Chrome |
| Commercial Parameter | Value / Policy Details |
|---|---|
| Estimated Price Range | ₹80,000 - ₹3,50,000 (Ex-Works Satara) |
| Warranty Period | 1 Year Manufacturer Warranty on Pump Frame & Bearing Assembly |
| Replacement Policy | 7-Day Replacement for manufacturing/size defects. See Policies & Warranty. |
| Standard Lead Time | 2-4 weeks |
As trusted manufacturers in Maharashtra and India, Chema Engineers provides guaranteed ex-stock dispatch of equipment and wear spares from our MIDC Satara manufacturing facility to all major mining and stone crushing belts:
A: Chema Engineers manufactures 3/2, 4/3, 6/4, 8/6, and 10/8 heavy-duty slurry pumps, as well as HR75, HR100, HR150, HR250, MM75, and MM100 series for sand washing and mining slurry duty.
A: The split casing design allows technicians to swing the suction casing away during maintenance, enabling fast replacement of impellers, volute liners, and gland seals without cranes or dropping heavy parts.
A: All Chema Slurry Pumps and replacement impellers/liners are manufactured at Plot No. L-16, Additional MIDC, Satara, Maharashtra - 415004, India.
